[iOS / SwiftUI] Bottom Sheet Drawer Use with Gesture

Hi! this is TDCIAN!



Let's find out about how to make bottom sheet drawer that move with gesture!



Look at these codes!



(1) Home.swift



	import SwiftUI
	struct Home: View {
	// Search text binding value
	@State var searchText: String = ""
	// Gesture properties
	@State var offset: CGFloat = 0
	@State var lastOffset: CGFloat = 0
	@GestureState var gestureOffset: CGFloat = 0
	var body: some View {
	ZStack {
	// For getting frame for image
	GeometryReader { proxy in
	let frame = proxy.frame(in: .global)
	Image("bg")
	.resizable()
	.aspectRatio(contentMode: .fill)
	.frame(width: frame.width, height: frame.height)
	}
	.blur(radius: getBlurRadius()) // BlurRadius change depends on offset
	.ignoresSafeArea()
	// For getting height for drag gesture
	GeometryReader { proxy -> AnyView in
	let height = proxy.frame(in: .global).height
	return AnyView(
	ZStack {
	// Bottom Sheet
	BlurView(style: .systemThinMaterialDark)
	.clipShape(CustomCorner(corners: [.topLeft, .topRight], radius: 30))
	VStack {
	VStack {
	Capsule()
	.fill(Color.white)
	.frame(width: 60, height: 4)
	TextField("Search", text: $searchText)
	.padding(.vertical, 10)
	.padding(.horizontal)
	.background(BlurView(style: .dark))
	.cornerRadius(10)
	.colorScheme(.dark)
	.padding(.top, 10)
	}
	.frame(height: 100)
	.border(Color.red, width: 1)
	// ScrollView content
	ScrollView(.vertical, showsIndicators: false, content: {
	BottomContent()
	})
	.border(Color.blue, width: 1)
	}
	.padding(.horizontal)
	.frame(maxHeight: .infinity, alignment: .top)
	}
	.border(Color.green, width: 1)
	.offset(y: height - 100)
	.offset(y: -offset > 0 ? -offset <= (height - 100) ? offset : -(height - 100) : 0)
	.gesture(DragGesture().updating($gestureOffset, body: { value, state, transcation in
	state = value.translation.height
	onChange()
	}).onEnded({ value in
	let maxHeight = height - 100
	withAnimation {
	// (1) Mid
	if -offset > 100 && -offset < maxHeight / 2 {
	// * Test each case!
	offset = -(maxHeight / 4)
	// offset = -(maxHeight / 3)
	// offset = -(maxHeight / 2)
	// offset = -(maxHeight / 1.5)
	// offset = -(maxHeight / 1.25)
	// (2) Top
	} else if -offset > maxHeight / 2 {
	offset = -maxHeight
	// (3) Bottom
	} else {
	offset = 0
	}
	}
	// Storing last offset, so that the gesture can continue from the last position
	lastOffset = offset
	}))
	)
	}
	.ignoresSafeArea(.all, edges: .bottom)
	}
	}
	func onChange() {
	DispatchQueue.main.async {
	self.offset = gestureOffset + lastOffset
	}
	}
	// Blur radius for background
	func getBlurRadius() -> CGFloat {
	let progress = -offset / (UIScreen.main.bounds.height - 100)
	return progress * 30
	}
	}
	struct Home_Previews: PreviewProvider {
	static var previews: some View {
	Home()
	}
	}
	struct BottomContent: View {
	var body: some View {
	VStack {
	HStack {
	Text("Favorite")
	.fontWeight(.bold)
	.foregroundColor(.white)
	Spacer()
	Button(action: {
	}, label: {
	Text("See All")
	.fontWeight(.bold)
	.foregroundColor(.gray)
	})
	}
	.padding(.top, 20)
	Divider()
	.background(Color.white)
	ScrollView(.horizontal, showsIndicators: false, content: {
	HStack(spacing: 15) {
	VStack(spacing: 8) {
	Button(action: {
	}, label: {
	Image(systemName: "house.fill")
	.font(.title)
	.frame(width: 65, height: 65)
	.background(BlurView(style: .dark))
	.clipShape(Circle())
	})
	Text("Home")
	.foregroundColor(Color.white)
	}
	VStack(spacing: 8) {
	Button(action: {
	}, label: {
	Image(systemName: "briefcase.fill")
	.font(.title)
	.frame(width: 65, height: 65)
	.background(BlurView(style: .dark))
	.clipShape(Circle())
	})
	Text("Work")
	.foregroundColor(Color.white)
	}
	VStack(spacing: 8) {
	Button(action: {
	}, label: {
	Image(systemName: "plus")
	.font(.title)
	.frame(width: 65, height: 65)
	.background(BlurView(style: .dark))
	.clipShape(Circle())
	})
	Text("Add")
	.foregroundColor(Color.white)
	}
	}
	})
	.padding(.top)
	HStack {
	Text("Editor's Pick")
	.fontWeight(.bold)
	.foregroundColor(.white)
	Spacer()
	Button(action: {
	}, label: {
	Text("See All")
	.fontWeight(.bold)
	.foregroundColor(.gray)
	})
	}
	.padding(.top, 25)
	Divider()
	.background(Color.white)
	ForEach(1...6, id: \.self) { index in
	Image("p\(index)")
	.resizable()
	.aspectRatio(contentMode: .fill)
	.frame(width: UIScreen.main.bounds.width - 30, height: 250)
	.cornerRadius(15)
	.padding(.top)
	}
	}
	}
	}

view raw bottom_sheet_home.swift hosted with ❤ by GitHub





(2) BlurView.swift



	import SwiftUI
	struct BlurView: UIViewRepresentable {
	var style: UIBlurEffect.Style
	func makeUIView(context: Context) -> UIVisualEffectView {
	let view = UIVisualEffectView(effect: UIBlurEffect(style: style))
	return view
	}
	func updateUIView(_ uiView: UIVisualEffectView, context: Context) {
	}
	}

view raw bottom_sheet_blur_view.swift hosted with ❤ by GitHub





(3) CustomCorner.swift



	import SwiftUI
	struct CustomCorner: Shape {
	var corners: UIRectCorner
	var radius: CGFloat
	func path(in rect: CGRect) -> Path {
	let path = UIBezierPath(roundedRect: rect, byRoundingCorners: corners, cornerRadii: CGSize(width: radius, height: radius))
	return Path(path.cgPath)
	}
	}

view raw bottom_sheet_custom_corner.swift hosted with ❤ by GitHub





(4) ContentView.swift



	import SwiftUI
	struct ContentView: View {
	var body: some View {
	Home()
	}
	}

view raw bottom_sheet_content_view.swift hosted with ❤ by GitHub





(5) In simulator

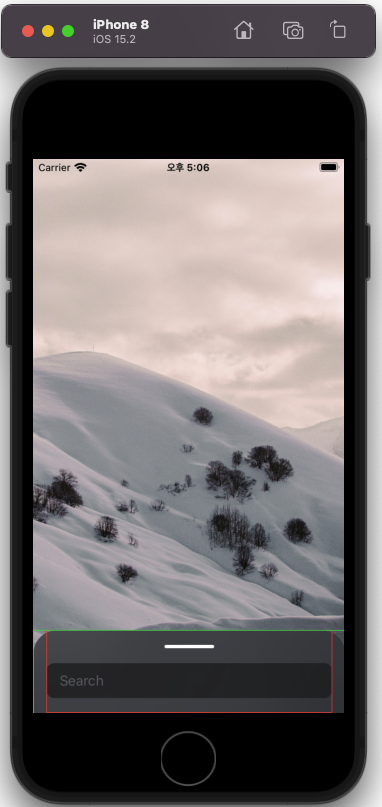

When you launched app, In Home.swift, find code in 97th line.

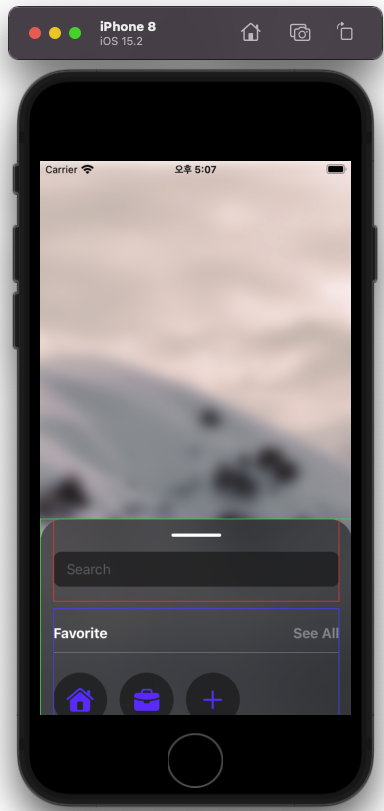

When you pushed sheet up lower than half -> In Home.swift, 'offset = -(maxHeight / 4)', find code in 86th line.

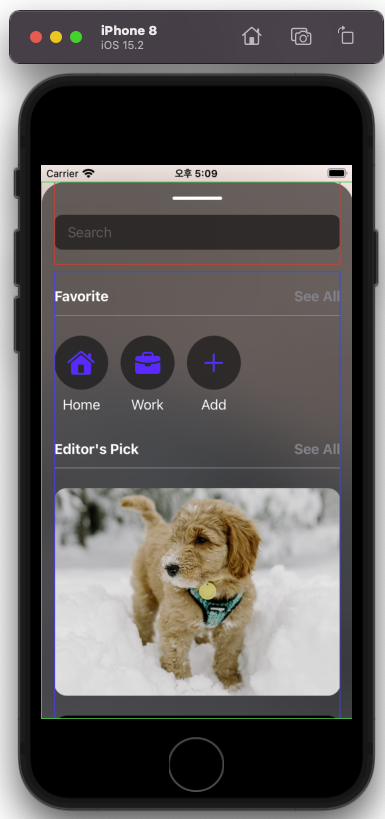

When you pushed sheet up more than half -> In Home.swift, find code in 93th line.





Full source code: https://github.com/TDCIAN/SwiftUIBottomSheetDrawer

GitHub - TDCIAN/SwiftUIBottomSheetDrawer: based on: https://www.youtube.com/watch?v=CyMtjSspJZA



Reference: https://www.youtube.com/watch?v=CyMtjSspJZA



Images Reference: https://unsplash.com/
