[iOS / UIKit] How to change UIPickerView Selected Background Color

안녕하세요!



오늘 다뤄볼 주제는 UIPickerView의 Selected Row 색상을 변경하는 것입니다!

기본적으로 회색으로 설정 되어 있습니다



위 시뮬레이터에서 보여지는 뷰들에 대한 코드를 먼저 보여드리겠습니다!





BEFORE

	// ViewController.swift
	// PickerView
	//
	// Created by JeongminKim on 2023/03/01.
	//
	import UIKit
	class ViewController: UIViewController {
	private lazy var pickerView: UIPickerView = {
	let pickerView = UIPickerView()
	pickerView.dataSource = self
	pickerView.delegate = self
	pickerView.translatesAutoresizingMaskIntoConstraints = false
	return pickerView
	}()
	override func viewDidLoad() {
	super.viewDidLoad()
	view.addSubview(pickerView)
	NSLayoutConstraint.activate([
	pickerView.widthAnchor.constraint(equalToConstant: 250),
	pickerView.heightAnchor.constraint(equalToConstant: 200),
	pickerView.centerXAnchor.constraint(equalTo: view.centerXAnchor),
	pickerView.centerYAnchor.constraint(equalTo: view.centerYAnchor),
	])
	pickerView.layer.borderColor = UIColor.blue.cgColor
	pickerView.layer.borderWidth = 1
	}
	}
	extension ViewController: UIPickerViewDataSource {
	func numberOfComponents(in pickerView: UIPickerView) -> Int {
	return 1
	}
	func pickerView(_ pickerView: UIPickerView, numberOfRowsInComponent component: Int) -> Int {
	return 10
	}
	}
	extension ViewController: UIPickerViewAccessibilityDelegate {
	func pickerView(_ pickerView: UIPickerView, viewForRow row: Int, forComponent component: Int, reusing view: UIView?) -> UIView {
	let numberLabel = UILabel()
	numberLabel.textAlignment = .center
	numberLabel.text = "\(row)"
	return numberLabel
	}
	}

view raw pickerView_before.swift hosted with ❤ by GitHub



코드로 보시는 바와 같이 색상에 대해 별도로 설정해준 것이 없음에도 불구하고 아래와 같이 배경색이 설정되어 있는 게 보입니다.

아마 여러분들은 여러분들이 원하는 디자인이 따로 있으시겠지요?

백그라운드 색상을 변경해 봅시다!





AFTER (System Yellow Color)



48~50번 Line의 Code를 주목해 주세요!



	// ViewController.swift
	// PickerView
	//
	// Created by JeongminKim on 2023/03/01.
	//
	import UIKit
	class ViewController: UIViewController {
	private lazy var pickerView: UIPickerView = {
	let pickerView = UIPickerView()
	pickerView.dataSource = self
	pickerView.delegate = self
	pickerView.translatesAutoresizingMaskIntoConstraints = false
	return pickerView
	}()
	override func viewDidLoad() {
	super.viewDidLoad()
	view.addSubview(pickerView)
	NSLayoutConstraint.activate([
	pickerView.widthAnchor.constraint(equalToConstant: 250),
	pickerView.heightAnchor.constraint(equalToConstant: 200),
	pickerView.centerXAnchor.constraint(equalTo: view.centerXAnchor),
	pickerView.centerYAnchor.constraint(equalTo: view.centerYAnchor),
	])
	pickerView.layer.borderColor = UIColor.blue.cgColor
	pickerView.layer.borderWidth = 1
	}
	}
	extension ViewController: UIPickerViewDataSource {
	func numberOfComponents(in pickerView: UIPickerView) -> Int {
	return 1
	}
	func pickerView(_ pickerView: UIPickerView, numberOfRowsInComponent component: Int) -> Int {
	return 10
	}
	}
	extension ViewController: UIPickerViewAccessibilityDelegate {
	func pickerView(_ pickerView: UIPickerView, viewForRow row: Int, forComponent component: Int, reusing view: UIView?) -> UIView {
	// MARK: Set background color of subviews!
	pickerView.subviews.forEach {
	$0.backgroundColor = .systemYellow
	}
	let numberLabel = UILabel()
	numberLabel.textAlignment = .center
	numberLabel.text = "\(row)"
	return numberLabel
	}
	}

view raw pickerView_after_yellow.swift hosted with ❤ by GitHub

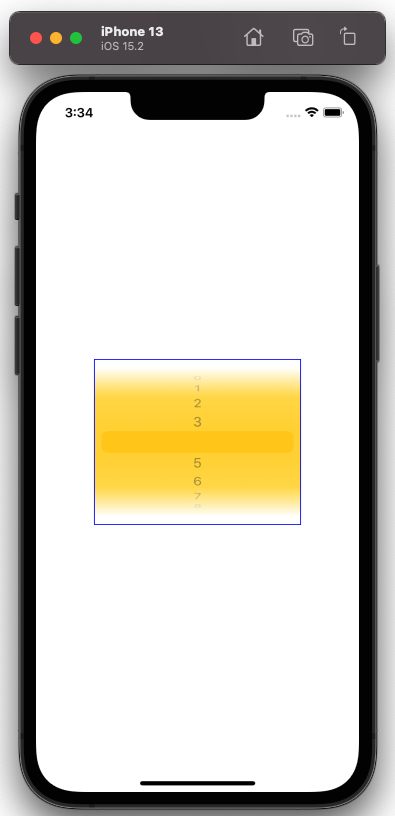

System Yellow Color로 설정된 게 보이시나요?



아마 높은 확률로 여러분은 아예 저 배경색을 지워버리고 싶으실 겁니다.

Clear 색상을 적용해 봅시다!



AFTER (Clear Color)



48~50번 Line의 Code를 주목해 주세요!



	// ViewController.swift
	// PickerView
	//
	// Created by JeongminKim on 2023/03/01.
	//
	import UIKit
	class ViewController: UIViewController {
	private lazy var pickerView: UIPickerView = {
	let pickerView = UIPickerView()
	pickerView.dataSource = self
	pickerView.delegate = self
	pickerView.translatesAutoresizingMaskIntoConstraints = false
	return pickerView
	}()
	override func viewDidLoad() {
	super.viewDidLoad()
	view.addSubview(pickerView)
	NSLayoutConstraint.activate([
	pickerView.widthAnchor.constraint(equalToConstant: 250),
	pickerView.heightAnchor.constraint(equalToConstant: 200),
	pickerView.centerXAnchor.constraint(equalTo: view.centerXAnchor),
	pickerView.centerYAnchor.constraint(equalTo: view.centerYAnchor),
	])
	pickerView.layer.borderColor = UIColor.blue.cgColor
	pickerView.layer.borderWidth = 1
	}
	}
	extension ViewController: UIPickerViewDataSource {
	func numberOfComponents(in pickerView: UIPickerView) -> Int {
	return 1
	}
	func pickerView(_ pickerView: UIPickerView, numberOfRowsInComponent component: Int) -> Int {
	return 10
	}
	}
	extension ViewController: UIPickerViewAccessibilityDelegate {
	func pickerView(_ pickerView: UIPickerView, viewForRow row: Int, forComponent component: Int, reusing view: UIView?) -> UIView {
	// MARK: Set background color of subviews!
	pickerView.subviews.forEach {
	$0.backgroundColor = .clear
	}
	let numberLabel = UILabel()
	numberLabel.textAlignment = .center
	numberLabel.text = "\(row)"
	return numberLabel
	}
	}

view raw pickerView_after_clear.swift hosted with ❤ by GitHub

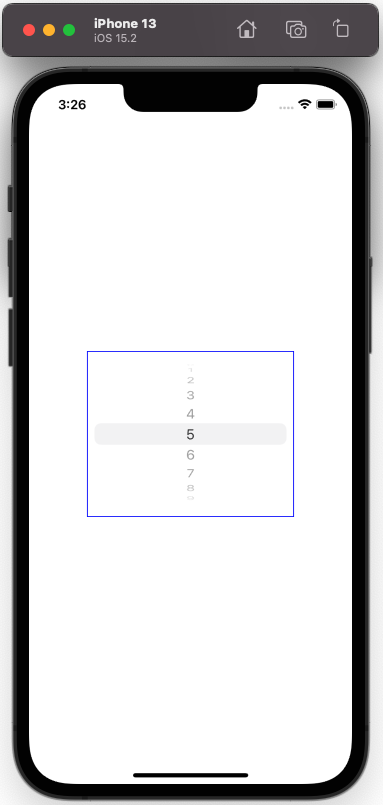

완전 Clear 해졌죠?





전체 Code가 있는 GitHub 주소입니다!

https://github.com/TDCIAN/UIPickerViewBackgroundColor

GitHub - TDCIAN/UIPickerViewBackgroundColor
